    ISO 9001 CE Constant Temperature and Humidity Testing Chamber Environmental Chamber

    Ask Lasest Price
    Brand Name : Lonroy
    Certification : ISO ASTM CE
    Price : Negotaible
    Delivery Time : 5-8 work days
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    Supply Ability : 200
    • Product Details
    • Company Profile

    ISO 9001 CE Constant Temperature and Humidity Testing Chamber Environmental Chamber

    ISO 9001 CE Constant Temperature and Humidity Testing Chamber High and Low Temperature Environmental Chamber

    Product Description

    Introduction

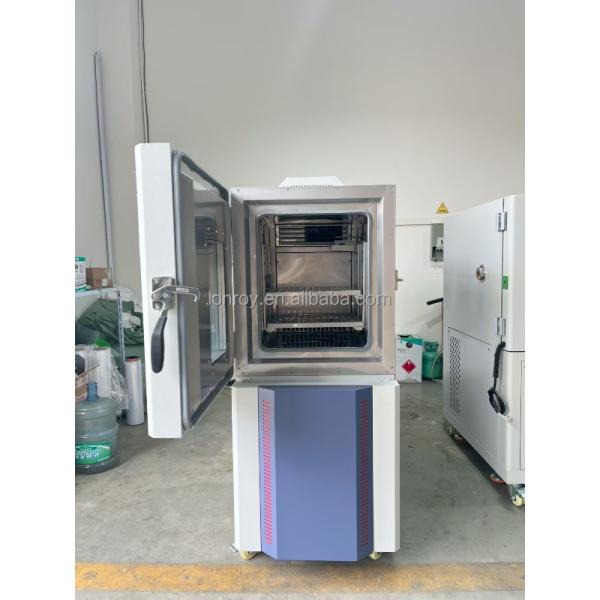

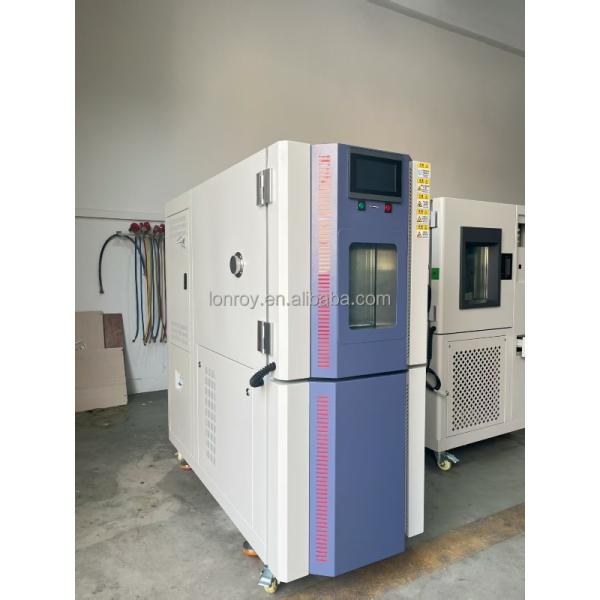

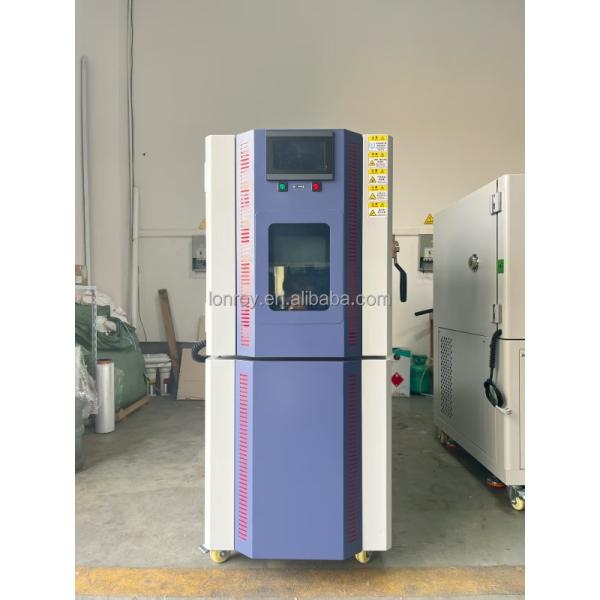

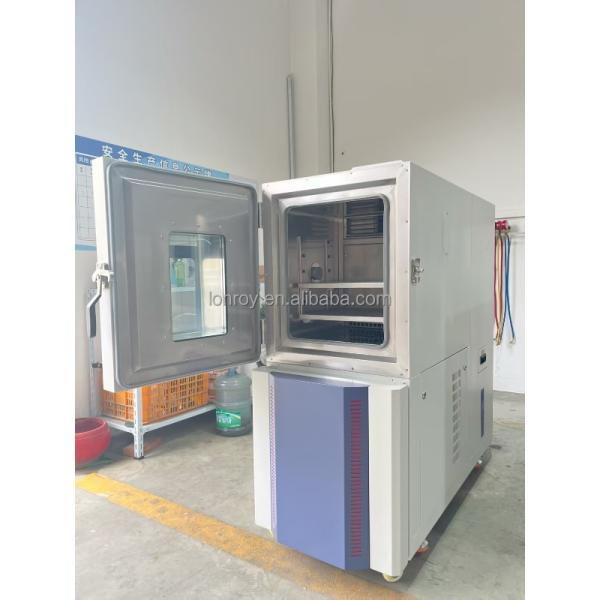

    The Climate test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
    It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

     Climate Test Chamber with different size and temperature range customization
    1.LCD touch screen
    2.Inner material:SUS#304
    3.Tato controller, with Independent R &D software (7 languages)
    4.Teme. Range: -70~150/180C adjustable

     Accessories
     Inner door with operation hole (optional)
    50mm or 100mm Entrance hole for test wire, Dia. 50mm or 100mm
    Sample Shelves, two layers or more
    R232 or R485 communication Interface for remote control

     OEM customization available
    High cost-effective
    CE, RoHS, FCC Marked Equipment,
    ISO 9001 certificated
    SGS tested SUS#304 stainless steel

    ISO 9001 CE Constant Temperature and Humidity Testing Chamber High and Low Temperature Environmental Chamber

    Technical Specification


    Model

    LR-HS-80
     (A~F)

    LR-HS-150
     (A~F)

    LR-HS-225
     (A~F)

    LR-HS-408
     (A~F)

    LR-HS-800
     (A~F)

    LR-HS-1000
     (A~F)

    Inner size: WHD(cm)

    40*50*40

    50*60*50

    60*75*50

    60*85*80

    100*100*80

    100*100*100

    External size: WHD(cm)

    105*165*98

    105*175*108

    115*190*108

    135*200*115

    155*215*135

    155*215*155

    Temperature range

    (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)

    Humidity range

    20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)

    Temp analytic accuracy/
     uniformity

    0.1ºC/±2.0ºC

    Temperature Fluctuation

    ±0.5ºC

    Humidity analytic accuracy/ Humidity control accuracy

    ±0.1%;±2.5%

    Heating/cooling time

    Heat up about 4.0°C/min ; Cooling about 1.0°C/min

    Inner and outer materials

    SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer

    Insulation materials

    Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials

    Cooling system

    Air cooling/single segment compressor(-40°C) ,air and water double segment compressor
     (-50°C~-70°C)

    Protection devices

    Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
     super humidity over-temperature protection switch, fuse, failure warning system

    Parts

    Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4

    Compressor

    Original France "Tecumseh" brand

    Controller

    TATO Taiwan

    Power

    AC220V 50/60Hz & 1 , AC380V 50/60Hz 3

    weight (kg)

    150

    220

    270

    320

    450

    580
