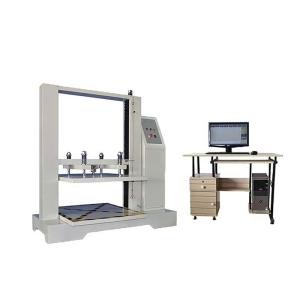

ISO 2872 Carton Box Compressive Strength Testing Machine Computer
Control
1. Uses
Carton compression tester is used to measure the compressive
strength of cartons, containers and so on, in order to check the
compressive and impact resistance of packaging materials during
transportation or handling.
Design Standard
TAPPI-T804, JIS-Z0212, ISO2872, NF H13-001, CNS 2236/3511, ASTM
D642
2. Can do below test
1) Strength Test: Can test max compress force and displacement of corrugated
box,box,container.
2) Constant/Fixed test: Can set compression force and displacement to check the box overall
performance,can help to provide necessary testing data of box
design.We also call it load-keeping test.
3) Stacking test: According testing standard requirement, can do stacking tests under
different conditions, like 12 hours, 24 hours.
3. Features
1. Adopting Windows platform, all parameter settings can be handled
in the dialog box, easy to operate.
2. No need to switch screens when using single-screen operation.
3. The software interface is available in Simplified Chinese,
Traditional Chinese and English, which can be easily switched.
4. Choosing translational, overlapping mode at the same time to
make sure a number of curve date comparison.
5. A variety of measurement units are available, with switchable
imperial and metric measurement units.
6. Features an automatic zoom function for optimal graphic size.
7. The machine has advanced structural design, strong rigidity,
small size and light weight.
8. It can perform compression strength, stack strength and peak
tests.
4. Software Functions1. Use windows working platform, set all parameter with dialog
forms and operate easy;
2. Using a single screen operation, do not need to change the
screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7. With many units of measurement, the metric system and british
system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the
most appropriate size of graphics;
5. Specifications
| Capacity | 1000KGF |
| Resolution | 1/100,000 |
| Unit | kg,lb,N,g switchable |
| Force accuracy | ≤0.5% |
| Test space | L1000×W1000×1000mm |
| Drive System | Servo Motor |
| Test speed | 0.1~500mm/min(standard speed 10±3mm/min) |
| Dimension | 1600×1200×1700mm |
| Weight | 400kg |
| Power | 1φ,220V/50Hz |
| Control | Full computer software control |
| Safety Device | High precision sensor, ball screw, test speed can be set at will
Overload protection, fault alarm, limit stroke protection |
| Function | 1. Automatically complete the test dynamic digital display sample
number, test pressure, sample deformation, starting pressure |
2. Constant pressure, deformation measurement; Shape change, resistance to pressure measurement; Maximum crushing force and stacking test
High precision sensor, ball screw, test speed can be set |
