Four Ball Friction Tester Machine Digital Readout Meter 10000N

    Buy cheap Four Ball Friction Tester Machine Digital Readout Meter 10000N from wholesalers

    Buy cheap Four Ball Friction Tester Machine Digital Readout Meter 10000N from wholesalers
    • Buy cheap Four Ball Friction Tester Machine Digital Readout Meter 10000N from wholesalers

    Four Ball Friction Tester Machine Digital Readout Meter 10000N

    Ask Lasest Price
    Brand Name : Lonroy
    Model Number : LR-MRS
    Certification : CE ASTM CE
    Price : Negotaible
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 200
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

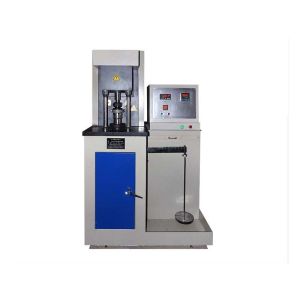

    Four Ball Friction Tester Machine Digital Readout Meter 10000N

    Digital Display Lever Type Four-ball Friction Tester Digital Readout Meter

    Product Introduction

    The LR-MRS Lever Four-ball Friction Testing Machine is a cost-effective laboratory evaluation equipment developed by our company to meet the needs of lubricant research and production users. This testing machine adopts the sliding friction mode and, under extremely high point contact pressure conditions, evaluates the bearing capacity of lubricants, including the maximum no-stall load PB, the sintered load PD, and the comprehensive wear value ZMZ, etc. three indicators.


    Product Parameter

    Test force

    Maximum test force

    10000N

    Less than 4% of the maximum test force, indication error

    ±5N

    More than 4% of the maximum test force, relative indication error

    ±1

    Test force loading method

    Manual loading of weights

    Friction force

    Maximum friction force

    300N

    The relative indication error of the friction force should not be greater than

    ±3%

    Automatic stop due to excessive friction at high load

    Test machine heating system

    Working temperature range of the heater

    indoor temperature~250℃

    Temperature control accuracy

    ±3℃

    Spindle speed

    Spindle speed range

    5~2000r/min (Stepless adjustable)

    Speed control accuracy

    ±2r/min

    Oil consumption for one test

    10ml

    Nominal diameter of the special standard steel ball

    φ12.7

    Spindle motor power of the testing machine

    1.5kW

    Spindle control of the testing machine

    Time control

    Automatic stop when the set time is exceeded

    Friction force control

    Automatic stop when the set friction force is exceeded

    Display and control range of the testing machine's time

    1s9999min

    Dimensions of the testing machine (length × width × height)

    1300×490×1220(mm)

    Main accessories: Surface scratch measurement physical microscope

    Magnification of the measuring microscope

    25× 100×

    Measurement range of surface scratches

    010mm

    Accuracy of the measurement range of surface scratches

    0.01mm
