Brand Name : | Lonroy |
Model Number : | BGD 124 |
Certification : | Includes Calibration Certification |
Price : | Negotaible |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability : | 200 |
Delivery Time : | 5-8 work days |

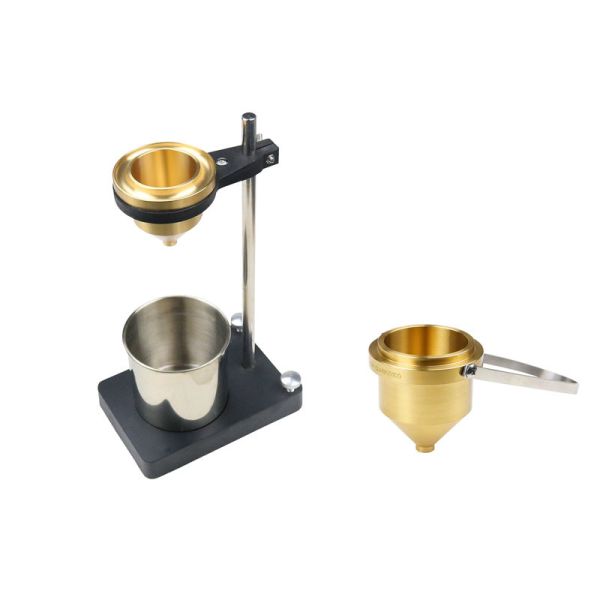

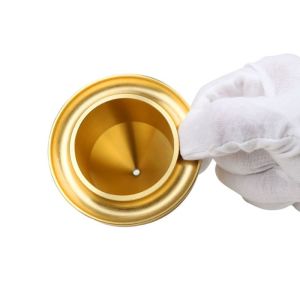

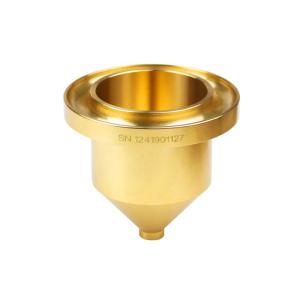

BGD 124 Coating Test Viscometer Viscosity Cup
1.Description
It is one of the most widely used viscosity cups in China at present. Designed according to GB/T 1723, it is suitable for measuring the conditioned viscosity of coatings and other related products (the outflow time is not more than 150 seconds). Under certain temperature conditions, measure the time for quantitative specimen to flow out from the hole of specified diameter all the time, expressed in S.
2.Technical Parameter
Capacity | 100ml ±1ml |
Inner Diameter | Φ49.5mm ±0.2mm |
Internal Cone Angle | 81° ±15' |
Nozzle Length | 4mm ±0.02mm |
Nozzle Orifice Diameter | Φ4mm ±0.02mm |
![]() |
